Views: 18
Fineness:325 Mesh
Input size: 20-35mm
Output size; 80-600 mesh
Production: 1-15T/H
Materials: limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, kaolin, petroleum coke, coal etc.
Steps for stopping the the Raymond mill
When you want to shutdown the Raymond mill, please do as the following steps.
Step 1: close the crusher.
The crusher stops feeding and closes the crusher after the crushing chamber emptying.
Step 2: close the elevator.
Turn off the elevator after the material in the elevator is emptied.
Step 3: close the feeder.
Adjust the amplitude of the electromagnetic vibration feeder to the minimum and then turn off the feeder.
Step 4: turn off the main mill.
Don't stop the main mill immediately.After the material in the main mill is finished grinding (about one minute), turn off the main mill motor.
The material emptying in the main mill of the Raymond mill is helpful to shorten the starting time of the next main mill motor.This can extend the service life of the motor.
Step 5: turn off the blower.
Shut down the blower half a minute after the main mill stops.Then turn the inlet control valve to the "off" position.
Step 6: turn off the analyzer.
Adjust the speed of the inverter of the analyzer to below 10 hz.Then press "stop" to turn off the air switch.

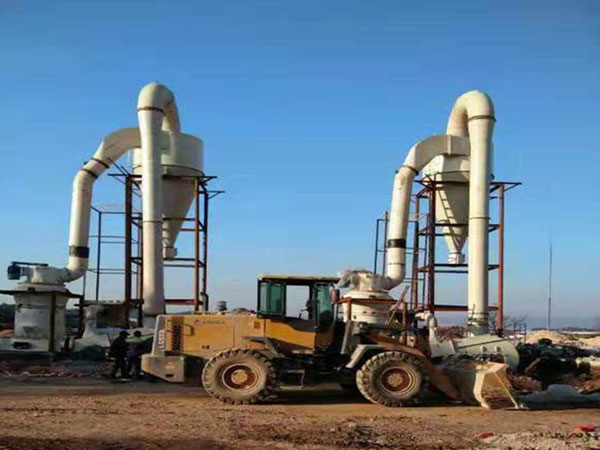

Guilin Hangda Mining Machinery Co.,Ltd has more than 30 years of experience in grinding mill manufacturing, 4 generations of mills mature and change; bevel gears overall drive, powerful power; using roller linkage boosting technology, the output is increased by 20% under the same power.
Energy saving and environmental protection
The raymond mill’s fan, spindle drive system and fan traditional system are all lubricated with thin oil. The oil change period is about 4 months, the oil change period is long, the cost is low, and the maintenance frequency is low. Through the environmental certification of industrial products, the air self-circulation system and the dust collector are both in a prong, meet national environmental requirements.
High return on investment
Modern country technology, national patents; The raymond mill can grind a variety of minerals to meet a variety of particle size requirements; low infrastructure costs, low operating costs, stand-alone processing capacity of up to 60T /H, high return on investment.
Scientific configuration , reduced energy consumption
The new hanging type cage type powder sorting machine, variable frequency control, fine controllable finished product; isolated cyclone powder collector, high efficiency of collecting powder; curved air duct, small airflow resistance, not easy to block material, fan efficiency improvement; curved surface can be the blade-changing blade has a low wear rate and high utilization rate; the non-resistance air inlet volute + the same resistance arrangement scheme reduces the economic loss caused by the system energy consumption.
