HD-4R3220
Hang Da Mining Machinery
8210000000
80-400 Mesh
1000-7000 kg
Original Place: China

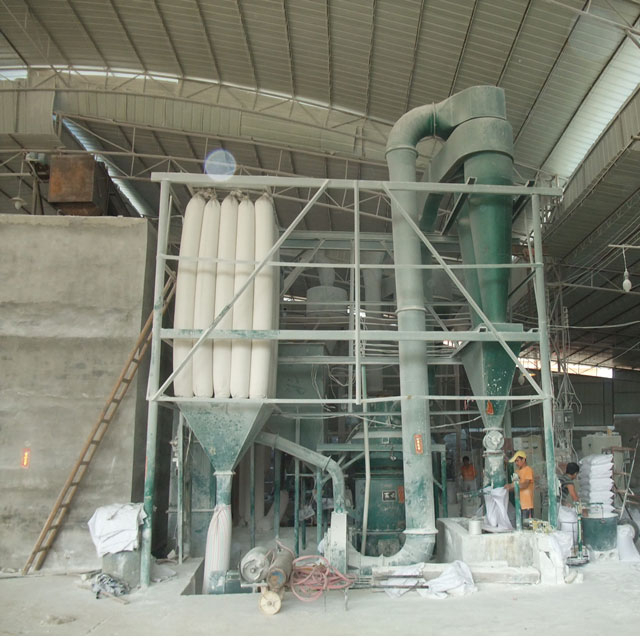

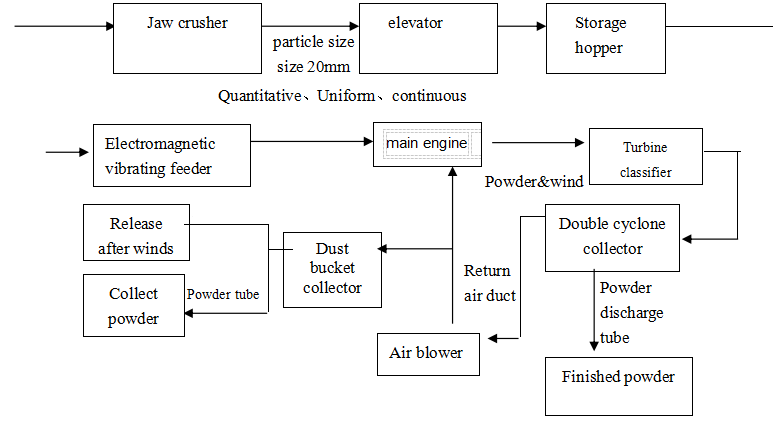

4R3220 Raymond Mill is a kind of stone grinder which can grind marble,barite,limestone and so on.This kind of stone girnder's working principle is as following.
1) Firstly,the crusher will crush the raw ore material .
2) The elevator will transport the crushed material to the feeding hopper .
3) The electronic magnetic vibration feeder feeds raw material into the main mill of the raymond mill from the feeding port.
4) Driven by the actuator facility, the center shaft rotates the Plum Blossom Rack assembly , roller assembly and shovels together.
5) The rotating roller assembly installed on the Plum Blossom Rack high centrifugal to pull the roller close to the ring.
6) Meanwhile, the shovel blades are shoveling the materials into the gap between the ring and roller.
7) Thus, the raw material will be grounded,extruded and stroke into fine powder by the rotary rollers and the grinding ring .
8) After grounding , the blower will blow up the powder to the classifier and the classifier will separated the powder with the air.
9) Finally, the qualified fine powder pass from the classifier, then to be collected by the cyclone. Meanwhile, the unqualified products will fall back to the main mill for regrinding till to be qualified.
