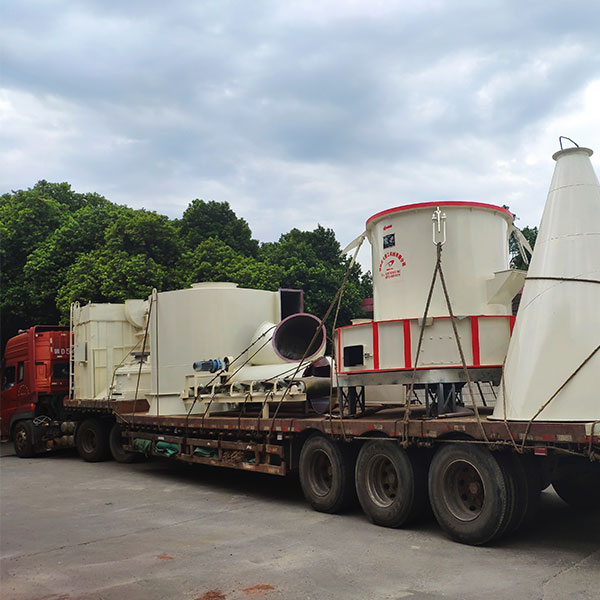

HD-1700
80-400 Mesh
2500-22000 kg

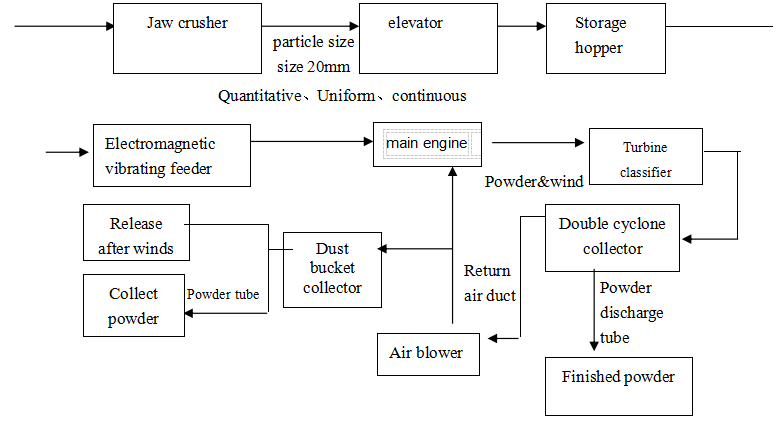

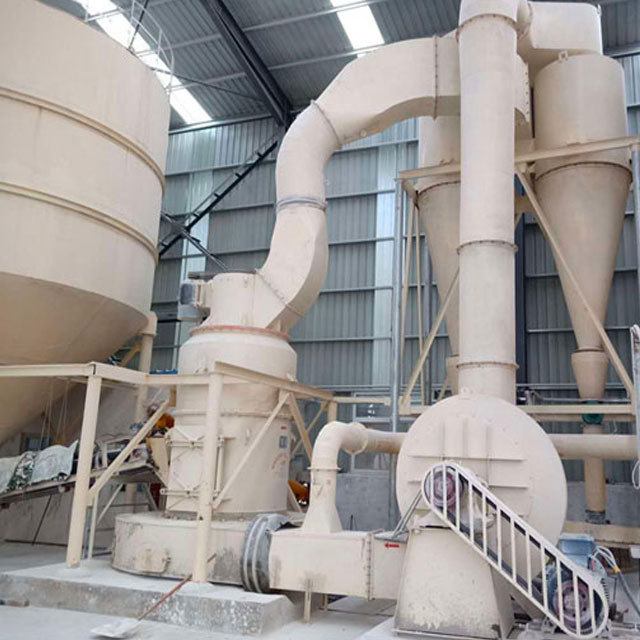

The working principle of HD1700 Raymond Mill
1.Firstly,the crusher will crush the raw ore material .
2.The elevator will transport the crushed material to the feeding hopper .
3.The electronic magnetic vibration feeder feeds raw material into the main mill from the feeding port.
4. Driven by the actuator facility, the center shaft rotates the Plum Blossom Rack assembly , roller assembly and shovels together.
5.The rotating roller assembly installed on the Plum Blossom Rack high centrifugal to pull the roller close to the ring.
6. Meanwhile, the materials are shoveled into the gap between the ring and roller by the shovel blades.
7.Thus, the raw material will be grounded,extruded and stroke into fine powder by the rotary rollers and the ring .
8. After grounding , the blower will blow up the powder to the classifier and the classifier will separated the powder with the air.
9. Finally, the qualified fine powder pass from the classifier, then to be collected by the cyclone. Meanwhile, the unqualified products will fall back to the main mill for regrinding till be qualified.
