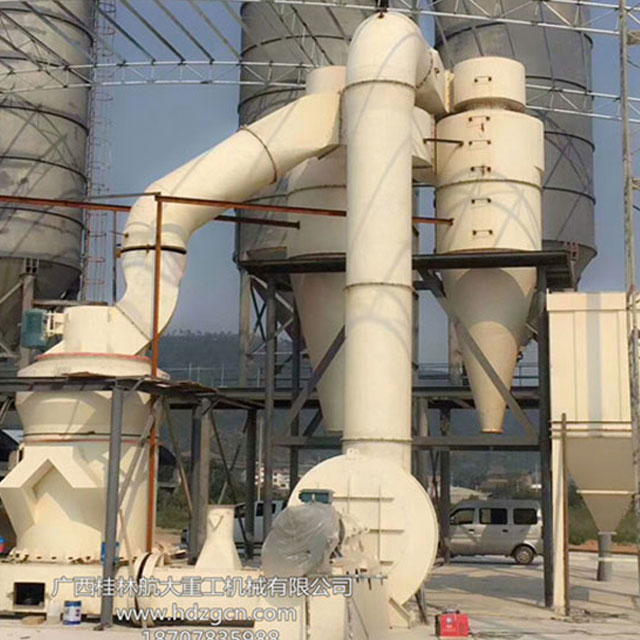

Stone Mining Mill HD2150 Raymond Mill

Application of Stone Mining Mill HD2150 Raymond Mill

With scientific & reasonable design and its unique advantages ,HD2150 Grinding Mill are applied widely in power, metallurgical, cement, chemical and non-metallic industry, for grinding of various materials, such as cement raw material, clinker, limestone, slag, manganese, gypsum, coal, barite, calcite etc.. The grinding field is wide and grinding type is abundant.

1. Humidity of grinding materials: from materials of less than 6 %(such as cement clinker), wide range of materials.
2. Grindability of materials: from high grindability(such as quartz sand, steel slag, mining slag, pyrophyllite, iron ore etc.) to low grindability (such as gypsum, calcite, etc).
3. Fineness of grinding product: from 2-5mm(such as raw shale for making brich in new wall material industry, sand for construction industry, etc) Product fineness is easy to adjust and simple operation.

Mill Structure of Stone Mining Mill HD2150 Raymond Mill

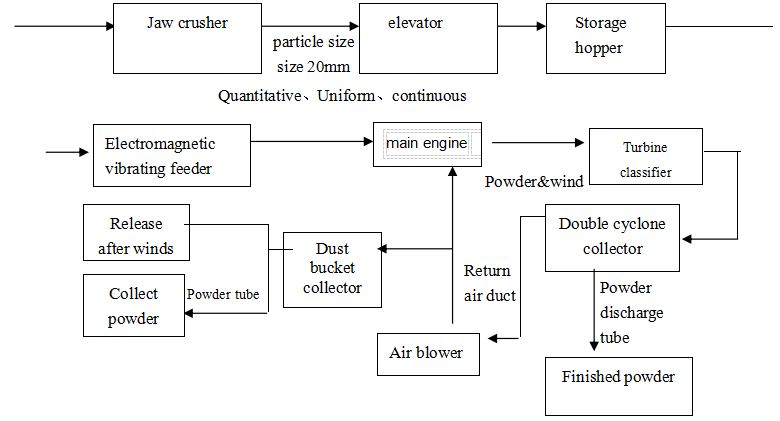

HD2150 Raymond Mill consists of main mill, constraint turbine classifier, pipe system, high pressure blower, double cyclone collector system, pulse air collector, feeder, electronic control motor and jaw crusher, pan elevator. The main mill consists pedestal, return air box, shovel, roller, ring, housing and motor. The roller and ring are cast by wear-resistant material. Double gearing device and reducer device can be applied in the power unit of the whole system.

Techinical Data of Stone  Mining Mill HD2150 Raymond Mill

Note: The capacity is for limestone powder, and specification is just a reference. The actual production depends on these materials being processed.

Performance Advantage of Stone  Mining Mill HD2150 Raymond Mill

1. High output and low energy consumption: This machine is the largest of the 8R series of domestic Raymond machines, and the output is equivalent to the output of LM1400 vertical mill.

2. Less floor space: the equipment less floor space, the machine covers an area of 160 square meters (not including the finished product warehouse and raw material warehouse).

3. The main engine structure is advanced: the main engine adopts the buffer device, the main engine cover structure is optimized design, the operation is stable and the noise is low; the main engine and the classify machine adopt the quick change pressing device, which is convenient for maintenance.

4. Large conveying capacity: the air blower adopts a high-pressure centrifugal fan, and the air volume and air pressure increase, which greatly improves the pneumatic conveying capacity.

5. High collection efficiency: the cyclone collector uses a parallel double cyclone collector, which increases the collection efficiency by 10-15% compared to the single cyclone.
