Roller Assembly
Hang Da Mining Machinery
8474209000

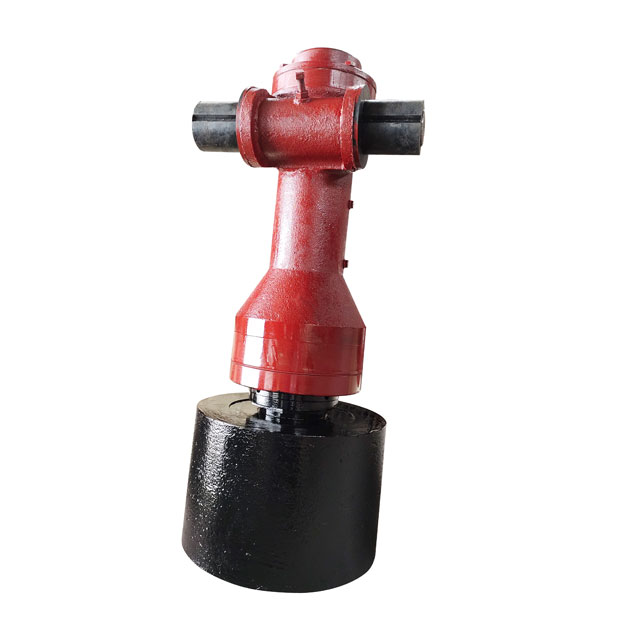

Introduction for Roller Assembly
Roller assembly is one of the most imortant Raymond roller mill parts.Rollers Assembly can be used in all the Rayond mill of our company.
The Raymond Mill is a grinding machine, suitable for the preparation of various kinds of mineral powder and coal powder preparation.
Materials: Barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorspar, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, etc.
Applications: Metallurgy, chemical engineering, building materials, mining, pharmacy, cosmetics and other fields
Moh’s hardness below Grade 7
Moisture below 8%
Non-combustible and non-explosive
Feed size ranging from 40 to 400meshes
After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTM Medium-speed Grinding Mill. After grinding, materials are blown away by airflow to the powder concentrator for classifying. Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector. This system adopts a closed circuit and runs under positive and negative pressure.
Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow. So, SBM arranges exhaust valves at the air outlet of the fan to induce redundant air into the bag filter. After purifying, the redundant air is discharged. This arrangement can achieve both the balance of airflow and the eco-friendly production.
