Features of High Quality Superfine Mineral Grinding Equipment Raymond Mill
1. Open- circuIt System, With revolutionary and innovative technology for the unique structure
2.Time-saving, Convenience Maintenance, Low labor Strength
3.Suitable for grinding hard materials and powdery materials
4. Operations are stable and small vibration: The housing will not easy to crack, Center shaft withstands even the greatest wear and tear
5.Finished powder fineness:325-1250 mesh(adjustable)
Technical data of High Quality Superfine Mineral Grinding Equipment Raymond Mill :
Model：Raymond mill HDX1620
Max.feeding size:10mm
Fineness: 325-1250 mesh
Capacity:1.5-10T/H
Ring size: φ11620× 300mm
Total power: 375kw
Performance Advantages of High Quality Superfine Mineral Grinding Equipment Raymond Mill：
1.Time-saving, Convenience Maintenance, Low labor Strength :

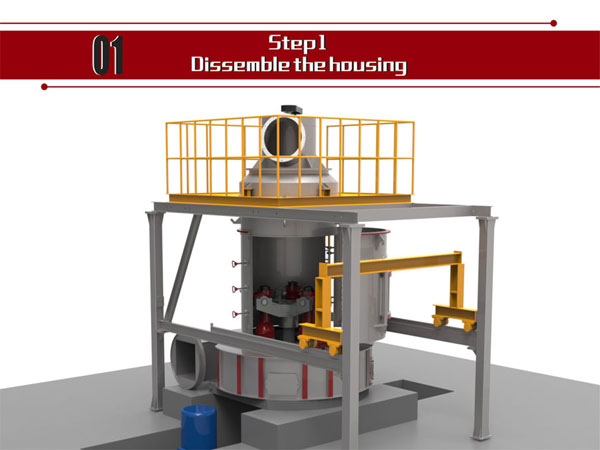

To maintain the grinding ring, you need three Steps only for HD DBMX Ultrafine Raymond Mill.
2. The housing will never crack:
HD DBMX Ultrafine Raymond Mill :
1）Housing designed with folio door，easy disassembly.
2）Lock catch design between classifier and main mill, easy disassembly.
3） Flexible coupling between housing and main mill，this can help the housing being away from the grinding chamber ;
4）Possibility of main mill housing been cracked is minimal: HDW Series German Type Grinding Mill assembled with flexible coupling between housing and main mill. When the main mill works, the housing will have no force and vibration. This can help the housing will be strong enough.
3. Center shaft withstands even the greatest wear and tear, Seal parts of the center shaft are easy maintenance
HDX Ultrafine Raymond Mill for Gypsum :
1)New technology structure to protect the center shaft. The framework oil seal is installed with a new technology structure to protect the center axis. Thus, the center axis of the main mill can withstand even the greatest wear and tear
2)More easy maintenance
3)To service the oil seal equipment, workers don’t need to disassemble the main mill anymore. Workers can replace the oil equipment from the repaired tank of the reducer. This can save equipment maintenance time and labor intensity greatly.
4.Suitable for grinding hard and powdery materials
HDX Ultrafine Raymond Mill for Gypsum has no return air box and no air duct guard plate structure. And the grinding chamber is full of negative pressure. which makes the powdery material in the sealed grinding chamber to be ground perfectly.
The powdery material is ground in the closed grinding chamber. Then the finished powdery material is pumped to the classifier to be classified by the negative pressure . since there is no positive pressure in the lower part of the grinding chamber, the powdery material will no be raised in the grinding chamber due to positive pressure. This ensures the effective grinding of powdery material in the grinding chamber.
5. Assembled with new technology ultra-fine classifier:
HDX Ultrafine Raymond Mill for Gypsum：
Turbine blades of ultra-fine classifiers are vertically embedded in upper and lower panels. The blade will not deform without welding. With equal blade spacing, high classification accuracy, and concentrated particle size distribution, it can separate 325-1250 mesh powdery materials.
